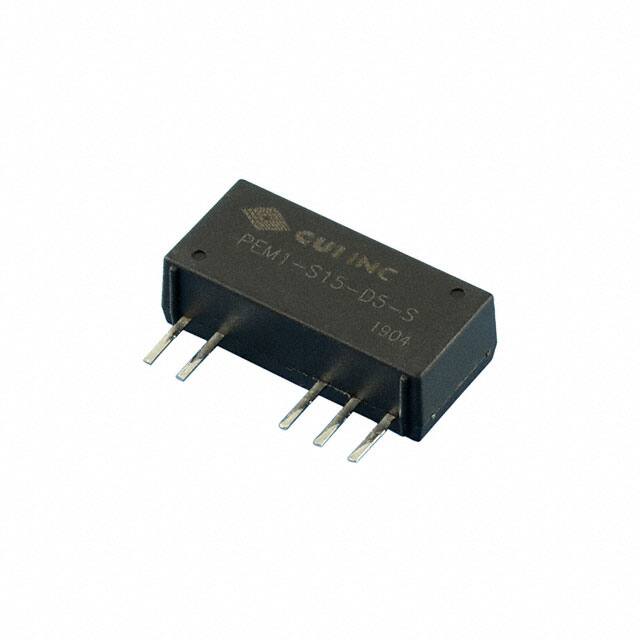

Factory Lead Time

9 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

7-SIP Module, 5 Leads

Operating Temperature

-40°C~105°C

Packaging

Tube

Series

PEM1-S (1W)

Published

2016

Size / Dimension

0.77Lx0.24W x 0.37 H 19.5mmx6.0mmx9.3mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

1W

Terminal Position

SINGLE

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

10

Pin Count

7/5

JESD-30 Code

R-PSMA-P5

Number of Outputs

2

Efficiency

80%

Voltage - Isolation

3kV

Voltage - Input (Max)

16.5V

Output Voltage

5V

Max Output Current

100mA

Voltage - Input (Min)

13.5V

Input Voltage-Nom

15V

Trim/Adjustable Output

NO

Voltage - Output 2

-5V

Total Power Output-Max

1W

Features

SCP

Height

9.398mm

Length

19.5mm

Width

6mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
